Electrical Discharge Machine (EDM)

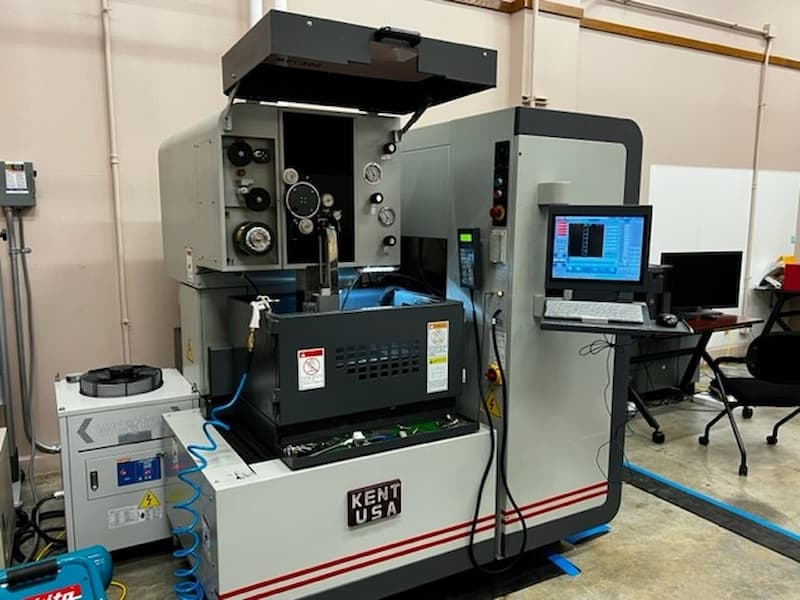

EDM
  • Name: Wire Cut Electrical Discharge Machine (EDM)
  • Manufacturer: Kent USA
  • Model Number: WSi-200
  • Location: AMMPI Annex 112
The Kent USA WSi-200 Wire Cut EDM is a high-precision, submerged Electrical Discharge Machining (EDM) tool that uses a thin, electrically charged wire to cut complex shapes and intricate details into electrically conductive materials, ideal for aerospace, medical, and mold-making parts, offering extreme accuracy, minimal noise, and superior taper cutting with its stable, submerged design and advanced auto-threading.
System Features
  • Machine structure designed and analyzed by CAE system for high structural rigidity.
  • U, V, Z axis strategically placed on upper column for enhanced spindle rigidity and precision.
  • Magnet power clutch wire-receiving systems.
  • ATW auto threading wire system
  • Permanent generator control system for wire tension stability
  • Accurate linear guide ways coupled with patented linear and block design
Safety & Protection
  • Operational Safety: Integrated E-stops on the CNC console, with standard, safe submerged operation.
  • System Integrity: Designed for minimal noise and lower wire breakage.
Configurability & Accessories
  • Guidance: Equipped with upper and lower wire diameter guides.
  • Software: Supports CAM software integration.

Kent USA Specifications
